Scan-to-BIM

Accurate, information-rich Revit models from verified 3D scans.

We convert real-world building data into accurate,
intelligent 3D models

Our proprietary technology and process enables the fast delivery of accurate 3D representations of any space.

Our BIM deliverables include

Representation of as-is conditions for building information modelling (BIM)
GET A QUOTE
ACCURATE 3D REPRESENTATIONS.

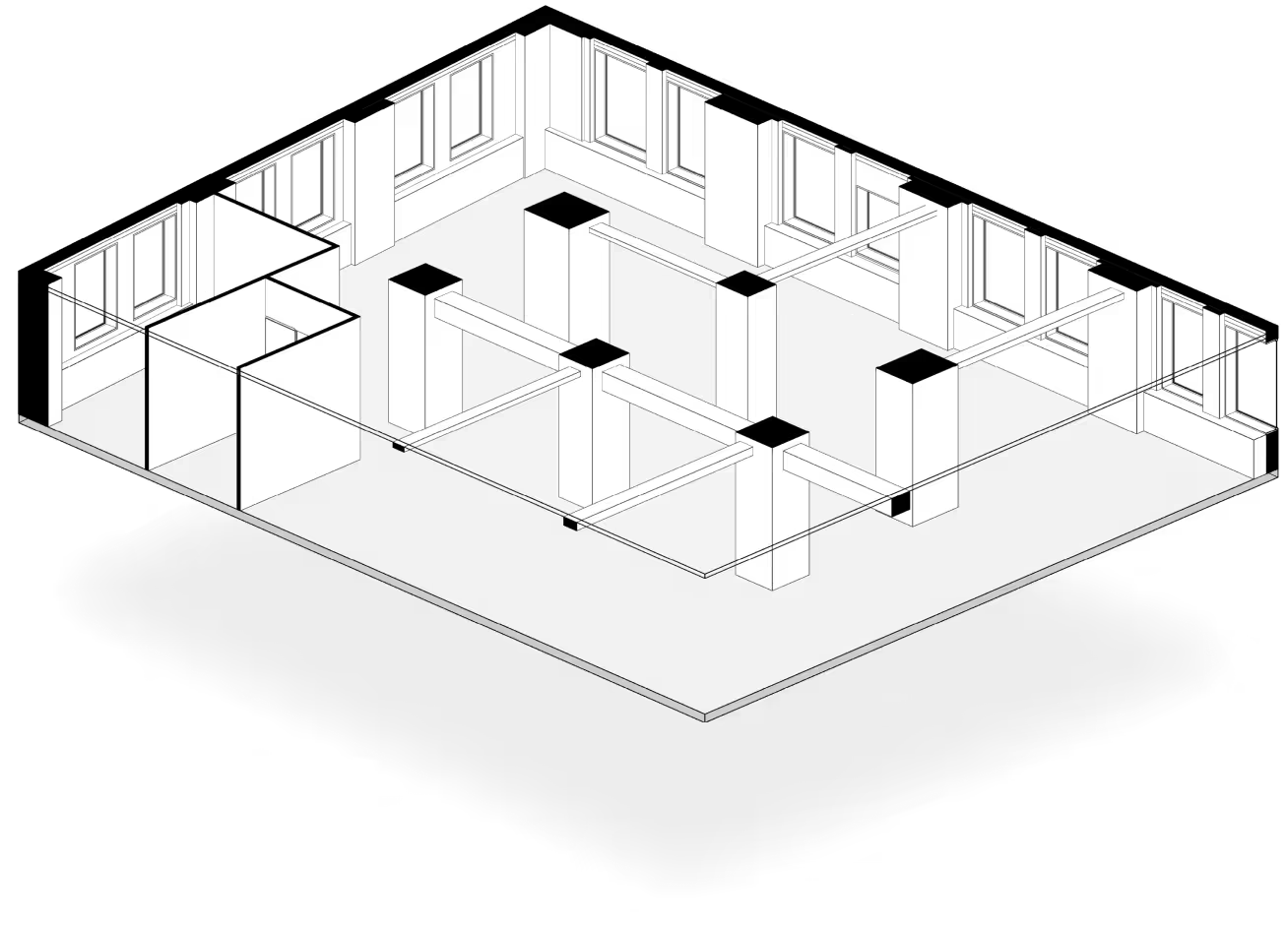

LOD Level 100

LOD Level 100

A digital 3D model containing the basic structural assembly of a building, including openings, fittings and fixtures, with generic materials applied where known / verified. Accurate size, shape, location and orientation of all building elements are modelled.
LOD Level 200

LOD Level 200

As in level 100, plus increased level of detail in model geometry is provided.
LOD Level 300

LOD Level 300

As in level 200, plus elements such as furniture, MEP fixtures and other architectural features are modelled in a simple block style, with accurate quantities, size, shape, location and orientation. Increased detail on fixtures and fittings, openings and ceiling grids are provided.

Optional deliverables

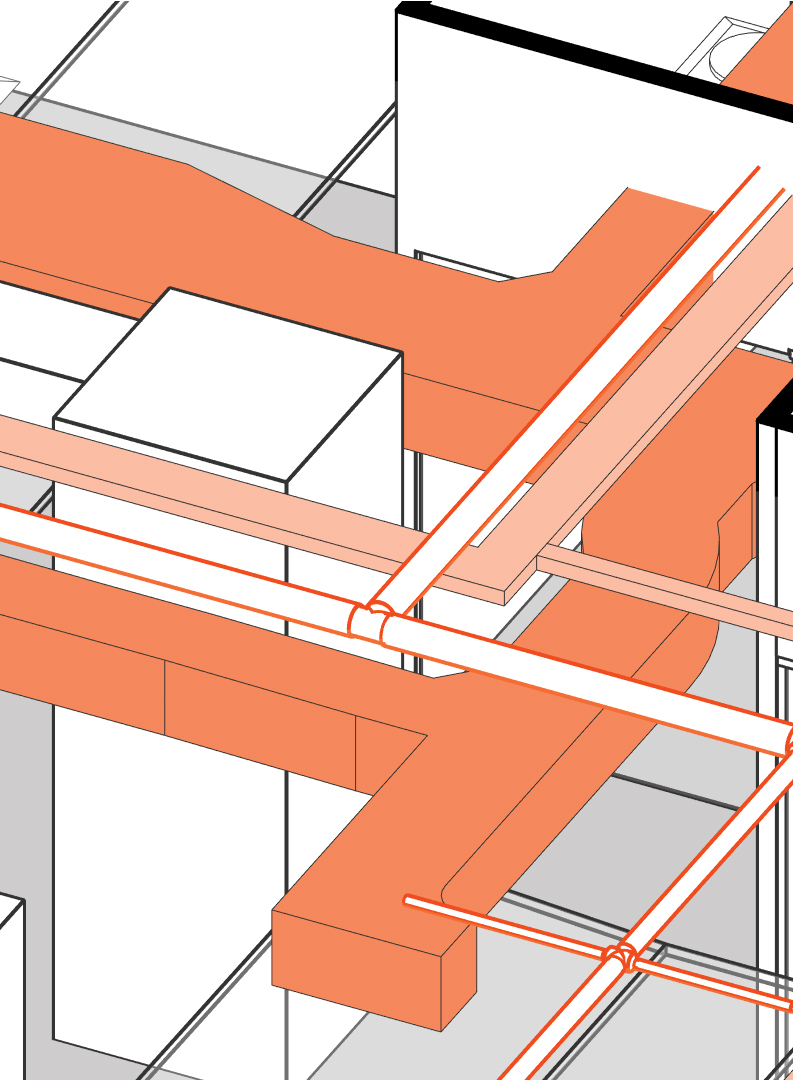

MEPF LOD 100

MEPF LOD 100

MEPF LOD 100

The Mechanical, Electrical, Plumbing, and Fire Protection equipment and fixtures are modelled in-place using placeholders. The size, height and runs of the equipment and fixtures will be accurately modelled. The elevation of these items will be adjusted only where there is a level change larger than 30mm/1”.

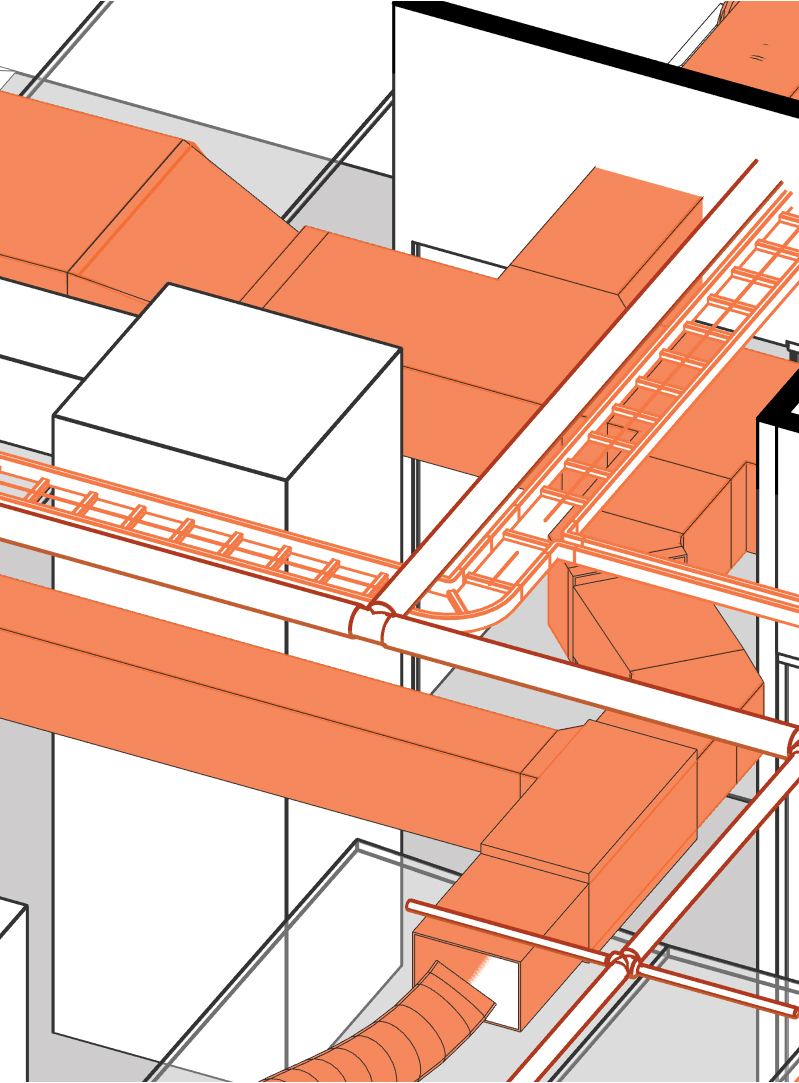

MEPF LOD 200

MEPF LOD 200

MEPF LOD 200

The Level 2 model will contain indicative MEPF runs and placeholder mechanical equipment. Only elements visible through non-invasive scanning will be modelled.

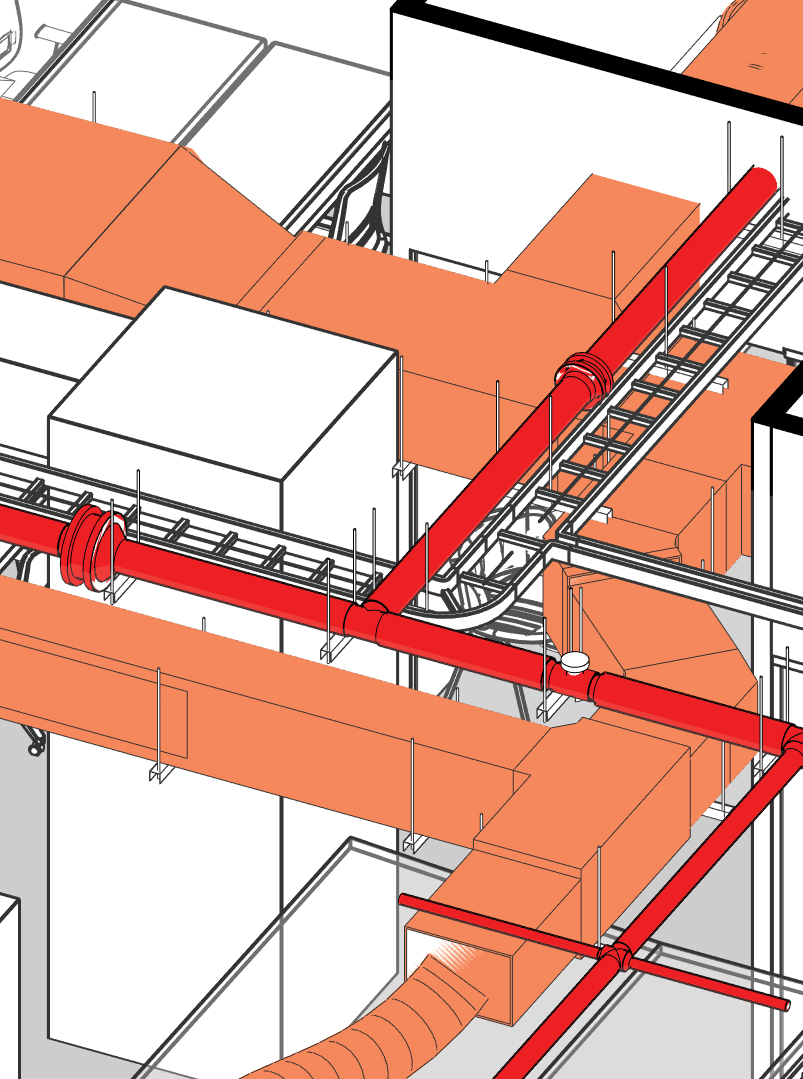

MEPF LOD 300

MEPF LOD 300

MEPF LOD 300

This model will show all items broken up by Revit categories and types to detail. The MEPF equipment will be modelled to show the heights and steps in runs as well as slopes larger than 30mm / 1”. The runs will be modelled to include the detailed joints and fixtures. Mechanical family models that closely match the actual on-site equipment will be used wherever possible and scaled to match the actual size.

Why it matters

01

Architectural, structural, and MEP models

Architectural, structural, and MEP models built from verified
3D scan data
02

Accurate digital representations

Accurate digital representations of existing conditions for
seamless coordination
03

Trusted data foundation

Trusted data foundation to support design, construction, and
asset management
04

Enhanced collaboration

Enhanced collaboration across disciplines with consistent,
verified information

Explore a Revit model

Through Stak Hub, explore and manage
your spatial data effortlessly.

Stak Hub brings all your verified spatial data together in one secure, intuitive platform. Access floor plans, CAD, BIM, photography and digital twins instantly — all produced through DRC’s proprietary technology. With every asset structured, standardised and easy to navigate, you gain complete visibility and control across your portfolio.
GET A QUOTE
As a customer and investor, we’ve been
impressed by the accuracy, speed and
quality of the output, and how it can help
us improve data driven decision making.

Explore additional services we provide

Verified. ACCURATE. EFFICIENT.

With rich, accurate 3D datasets and ground breaking end-to-end technology, Stak delivers a wide-range of industry leading assets.
GET A QUOTE

Measured
Building Survey

Delivering accuracy you can trust, we create a single verified dataset that helps you understand and showcase your property with confidence.

Measured
Building Survey

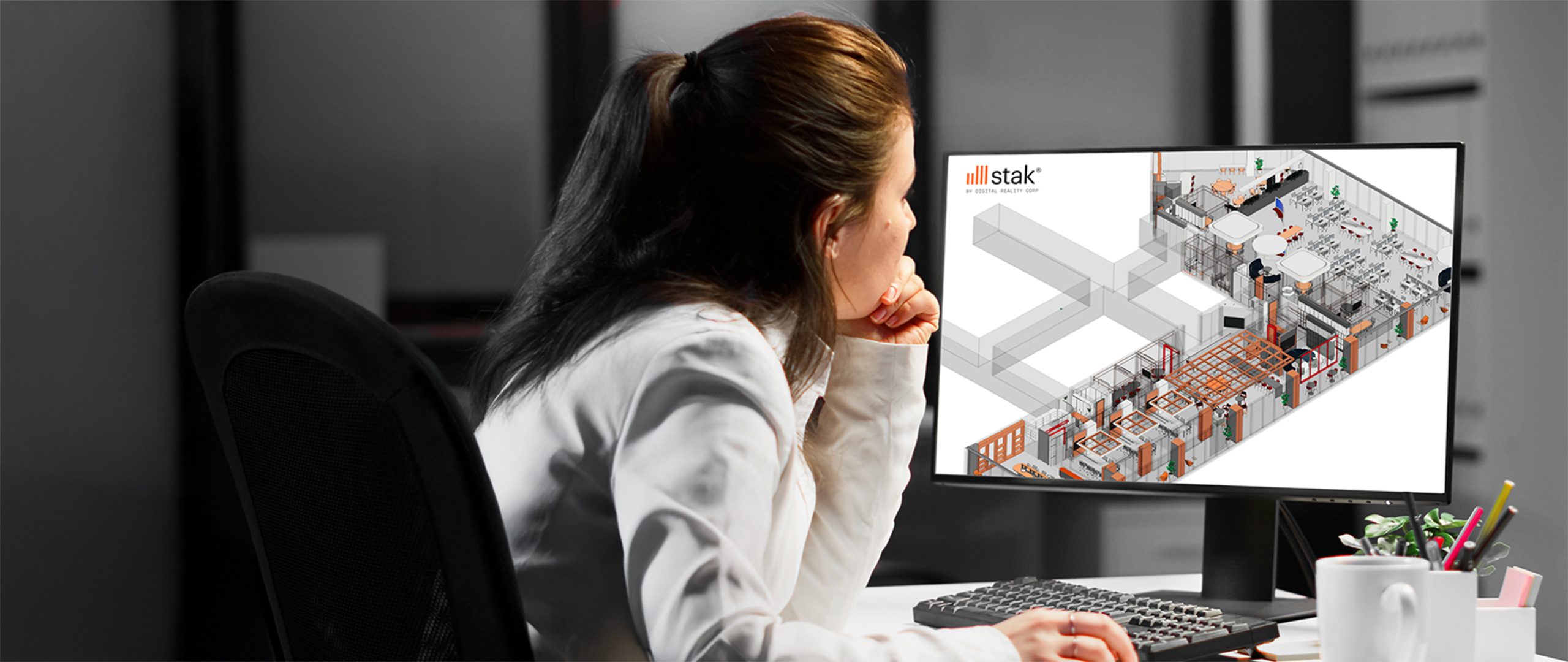

Scan-to-BIM

Using advanced laser scanning and BIM technology, we create high-accuracy 3D models with full architectural, structural, and MEP detail.

Scan-to-BIM

We’ve digitised 180,000+ spaces, totalling

390+ million square feet

Trusted to deliver accuracy and
reliability across portfolios
Grosvenor HQ, London
Scan-to-BIM

Grosvenor HQ, London
Palm Beach Towers, Dubai
Scan-to-BIM

Palm Beach Towers, Dubai

Every deliverable is underpinned by verified
point cloud data, its precision, every time.
